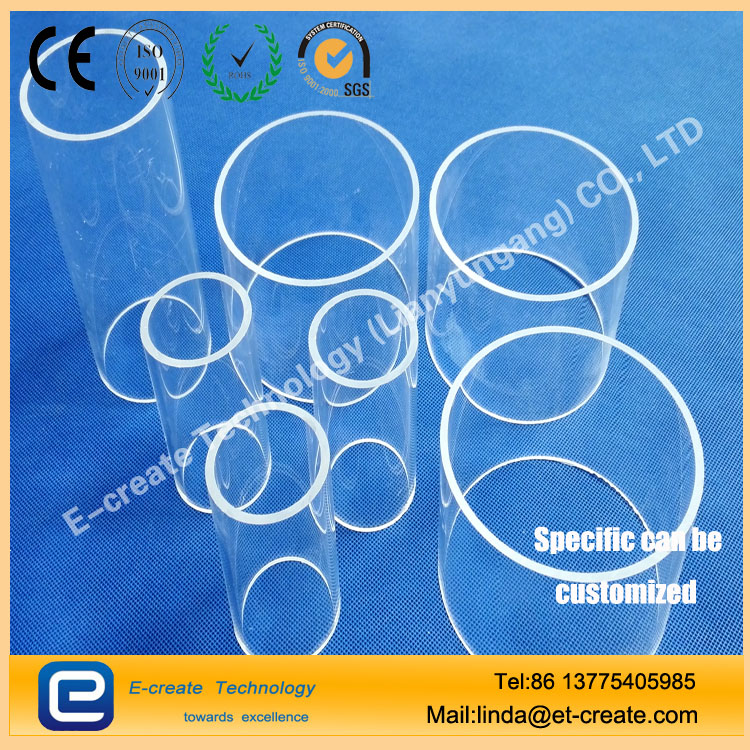

quartz tube for tube furnace

Brand: ET
model: ET-001
place of origin: china
Colour: Transparent
Density: 2.2g/cm3
Silica content: 99.99
use: High temperature
Melting point: 1730
Annealing Point 1215
Deformation point 1120
Mohs hardness 7
Coefficient of expansion 5.5
Refractive index 1.4585

1.wrapped with thin white paper .
2.winded with foam material
3.put into the paper carton
4.packed with wooden case

Quantity:

HTB1DO6_FFXXXXckapXXq6xXFXXXO_High-temperature-round-heat-resistant-clear-quartz-tubeHigh-temperature-round-heat-resistant-clear-quartz-tube (1)1521027898_21021047271519972159_21021047270529387_



Dimensional Tolerance:



Range of OD OD WT Siding Out of Round Bow/1220mm
≤6mm ±2.0% ±10% 12% 2.00% 2.5mm
6.00mm-15.00mm ±1.25% ±8% 10% 1.50% 2.5mm
15.00mm-20.00mm ±1.25% ±10% 15% 1.50% 2.5mm
20.00mm-25.00mm ±1.25% ±10% 15% 1.50% 3.0mm
25.00mm-30.00mm ±1.35% ±12% 15% 1.50% 3.0mm
30.00mm-80.00mm ±1.5% ±14% 15% 2.00% 3.0mm



Physical Property:




214 219 254
Density (g/cc) 2.2 2.21 2.21
Coefficient of Thermal Expansion(cm/cm°C) 5.5*10-7 5.9*10-7 6.7*10-7
Softening Point (°C) 1683 1660 1615
Annealing Point (°C) 1215 1204 1163
Strain Point (°C) 1120 1106 1066
Refractive Index 1.4585 1.456 1.46
Specific Heat (j/kgOK) 670 700 690
Compressive Strength  (Pa) >1.1*109 0.94*109 0.55*109
 Youngs Modulus (Pa) 7.2*1010 7.5*1010 7*1010
