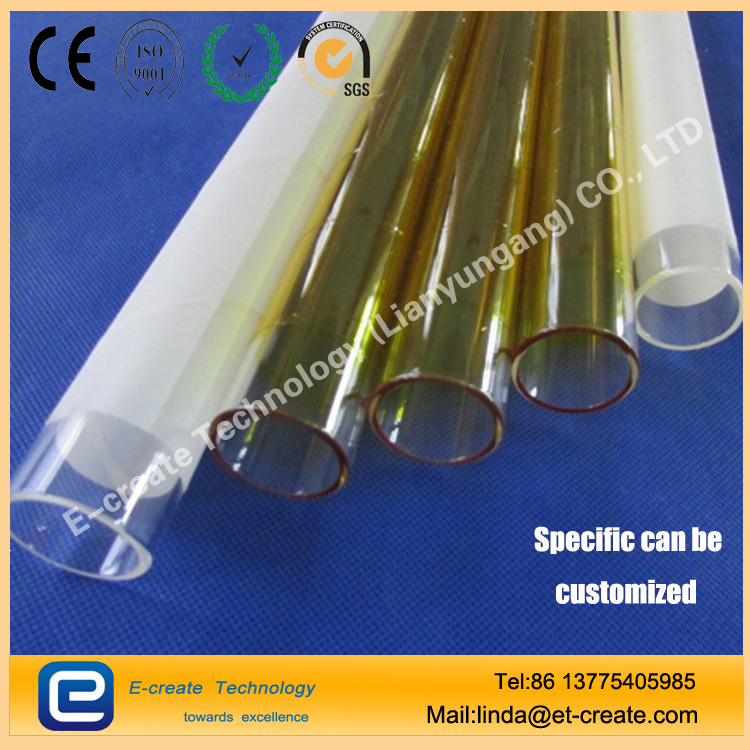

PE Quartz Tube 30*26*1130 30*26*1300mm

Brand: ET
model: ET-001
place of origin: china
Colour: Transparent
Density: 2.2g/cm3
Silica content: 99.99
use: High temperature
Melting point: 1730
Annealing Point 1215
Deformation point 1120
Mohs hardness 7
Coefficient of expansion 5.5
Refractive index 1.4585

1.wrapped with thin white paper .
2.winded with foam material
3.put into the paper carton
4.packed with wooden case


Packaging & Delivery
Packaging Detail: By exporting standard package.
Delivery Detail: Within 10 days

1, High temperature resistant
2, Corrosion protection
3, High voltage resistant
4. Verified by official web

Product Name: PE quartz tube
Specifications: To map processing
Raw materials: GE material

The company is a professional manufacturer of quartz glass, the company's main products - quartz glass products for the semiconductor, solar photovoltaic, medical equipment, lighting, chemicals, aerospace and other high-tech fields. Raw materials using state-of-the-art Momentive Performance Materials (formerly GE material).
The processing company produces a variety of quartz tube, quartz boat, crucible, etc...Quartz glass cutting, machining, grinding, cleaning, polishing, nearly twenty processes to produce high quality quartz glass products.
In order to meet the individual needs of our customers, plans, processing a variety of quartz glass apparatus.

High quality Special quartz tube for PECVD tube equipment comes

 High purity: purity is an important index of quartz glass, ordinary quartz glass content of more than 99.99% SiO2, high purity synthetic vitreous SiO2 content of more than 99.999%.
Thermal properties: heat resistance than any glass of quartz glass, a transparent quartz glass can withstand the high temperature 1100 ºC ~ 1150 ºC working conditions of long-term use.
thermal stability: quartz glass linear expansion coefficient is extremely small, it has high thermal stability. Has to withstand severe temperature changes without the ability to burst.
mechanical properties: hardness transparent quartz glass is 6 to 7 Mohs, pressure 14,000 kg / cm 2, bending 700 kg / cm 2, the specific gravity of 2.903, the mechanical properties significantly better than Hard glass and ceramics.
chemical properties: quartz glass material is good acid, the chemical stability of the ceramic is equivalent to 30 times the acid, in addition to more than 300 ºC hydrofluoric acid and phosphoric acid, is not corrupted by other acids.
optical properties: quartz glass having good spectral characteristics, it can be transparent to ultraviolet and infrared rays, high-purity synthetic quartz glass can penetrate deep UV and anti-r-rays.
Electrical Properties: quartz glass can hardly contains the basic ion-conductive, as compared with other glass are poor conductors. Has excellent properties at UHF. So as a solid insulating material. The electrical properties far superior than other materials.
Jinzhou Jinda Glassworks is a professional manufacturer of quartz quartz glass and quartz products business, the number of young professionals and enterprising spirit of the young rich composition. It is based on the development of high-tech for its own power, in order to maximize services in the community for the purpose, flexible, energetic, highly specialized new technology industry. Under the care of leaders at all levels to support the community of colleagues and the staff works hard work and hard work, the plant since 1995 inception, has been rapid development. The purchase of advanced equipment, constant pursuit of technological updates, new times out, the huge increase in capacity, operating in the area of quartz materials and products, place, and rely on their strengths to develop a variety of products to address the urgent problem in production, expanding their business areas for the development of plants show a better future.



We mainly do all kinds of quartz glass processing and manufacturing.
