PE CHN quartz oxidation tube / quartz reduction tube / quartz liner (redox tube)

Availability:
Quantity:

IMG_4909IMG_4910IMG_4907IMG_4919IMG_5284IMG_5285IMG_5287IMG_5286Product Description

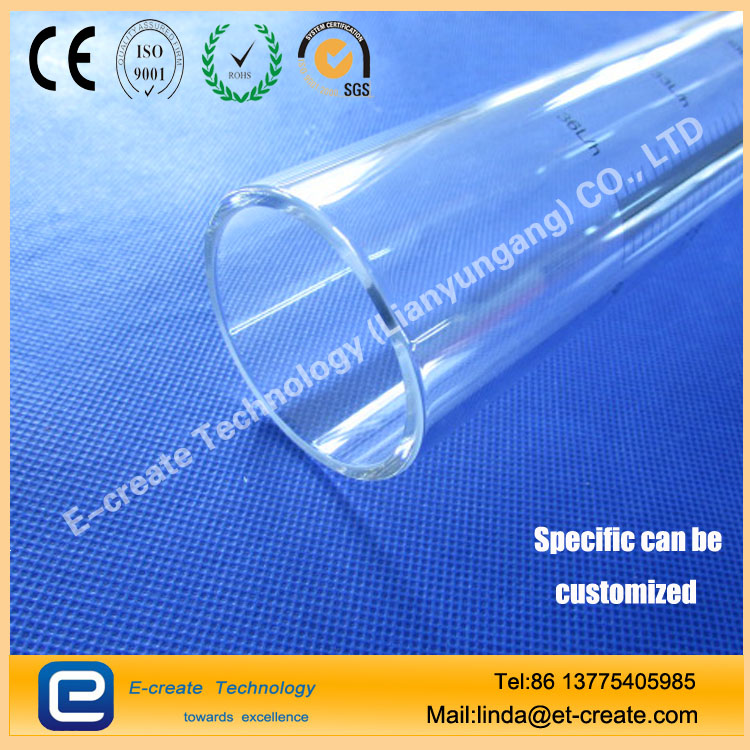

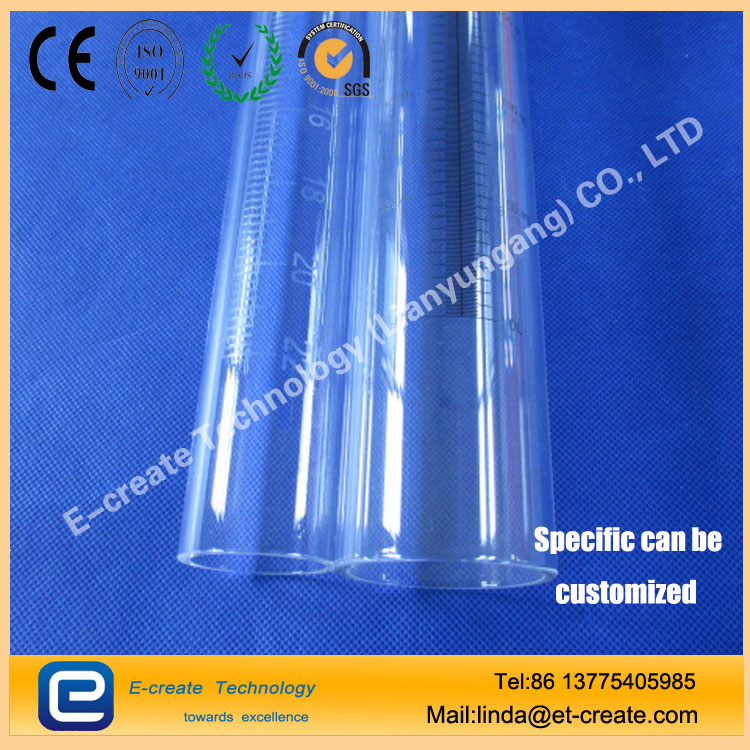

Bestselling transparent quartz tube OD2-650mm dimension
1. Quartz tube: OD2mm-650mm
2. Wall thickness: 1mm-10mm
3. Length: Max1240mm (or according to your special requirement)
4. Purity: 99.99% min
5. Shape: One end closed
5. Resistance 1100 degree, 1000 long time work
6. Low OH
7. Nice Appearances
8. Strong Corrosion-resistant
9. Good thermal stability
10. Good transparency for light>90%
11. Good electrical insulation
12. Special dimension and tolerances are available upone requests
13. Useful: Electric light source, semiconductor, optical, photovoltaic, chemical industries



  our design and drawing are accepted, we can make as your requirement. Waitting for your special specification to offer.


 Range of OD

  OD

  WT

Out of Rou n d

Bow\1240mm

       ≤6mm

±2.0%

  ±10%

2.0%

2.5mm

 6.00-15.00mm

±1.25%

  ±8%

1.5%

2.5mm

15.00-20.00mm

±1.25%

  ±10%

1.5%

2.5mm

20.00-25.00mm

±1.25%

  ±10%

1.5%

3.0mm

25.00-30.00mm

±1.35%

  ±12%

1.5%

3.0mm

30.00-80.00mm

±1.5%

  ±14%

2.0%

3.0mm

80.00-100.00mm

±1.0%

  ±0.5mm

2.0%

3.0mm

100.00-120.00

±1.5%

  ±0.8mm

2.0%

3.0mm

120.00-160.00

±1.8%

  ±1.0mm

2.5%

3.0mm

160.00-180.00

±3.0%

  ±1.0mm

2.5%

3.0mm

180.00-200.00

±4.0%

  ±1.5mm

2.5%

3.0mm

200.00-240.00

±4.0%

  ±1.5mm

2.5%

3.0mm

240.00-280.00

±6.0%

  ±2.0mm

2.5%

3.0mm

280.00-300.00

±8.0%

  ±3.0mm

2.5%

3.0mm
300.00-330.00 ±10.0%   ±4.0mm 2.5% 3.0mm
330.00-420.00 ±10.0%   ±4.0mm 2.5% 3.0mm



Chemical composition table





AL Fe K Na Li Ca Mg Cu Mn Cr B Ti
5-12 0.19-1.5 0.71-1.6 0.12-1.76 0.38-0.76 0.17-1.23 0.05-0.5 0.05 0.05 <0.05 <0.1 <1.0





Spectral transmission at   1.0mm thickness



m m <220 255 280 315 350 38 590 780
% 89 91 93 93 93 93 93.2 93.4



Physical Property:




214 219 254
Density (g/cc) 2.2 2.21 2.21
Coefficient of Thermal Expansion(cm/cm°C) 5.5*10-7 5.9*10-7 6.7*10-7
Softening Point (°C) 1683 1660 1615
Annealing Point (°C) 1215 1204 1163
Strain Point (°C) 1120 1106 1066
Refractive Index 1.4585 1.456 1.46
Specific Heat (j/kgOK) 670 700 690
Compressive Strength  (Pa) >1.1*109 0.94*109 0.55*109
 Youngs Modulus (Pa) 7.2*1010 7.5*1010 7*1010
