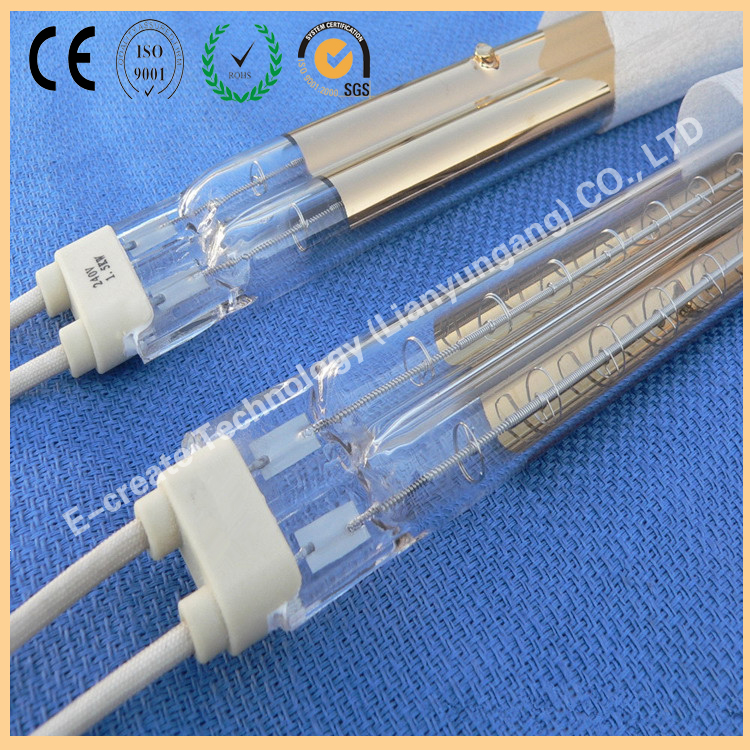

Double-hole gold-plated heating tube, double-hole gold-plated infrared radiation heating tube, double-hole medium-wave heating tube
1. Infrared radiant heating tube products cover the entire infrared band to meet the requirements of various materials and heating processes. Choosing a different wavelength of infrared radiant heating tube that matches your production requirements means lower energy consumption, shorter heating times, higher productivity and less equipment investment.
2, high transmittance transparent quartz material of infrared heating tube and special heating wire manufacturing process, so that the output power of single infrared heating tube can be from tens of watts to several kilowatts; double-hole heating tube can be The heating power in the same area is doubled. Infrared heating tubes can be densely arranged to achieve a maximum power output density of 200 KW/M2 (using a short-wave heating tube) and 80 KW/M2 (with a medium-wave heating tube).
3. Our products use a special gold reflective layer or a white inorganic reflective layer to concentrate the infrared radiation towards the heated object, allowing you to achieve higher heating efficiency with less power consumption.
4. Our heating tube uses ET quartz infrared radiant heating tube with high quality transparent quartz glass, so you don't have to worry about the surface rust and peeling that other heaters (such as metal tube heaters, sheet heaters, etc.) usually produce. Make sure you get a clean heating method. In a suitable manner, it is even possible to heat the heating tube in a liquid without contaminating the liquid.
5. Our infrared radiation heating tube is made of high quality transparent quartz glass material with very small thermal inertia, which can quickly heat up and cool down in a few seconds. Good temperature control allows you to get accurate process temperatures and reduce warm-up time to save you considerable energy.
6, our heating tube can provide you with the infrared radiation heating tube of all shapes and sizes you need. Not only single-hole straight pipe, double-hole straight pipe (twisted pipe), but also a variety of special shape heating pipes; as short as a few centimeters, as long as 3.5 meters, to meet your specific requirements.
7. ET high-quality quartz glass tube and heating wire material are equipped with special processing technology, which has created the long service life of Hongkang infrared radiation heating tube. The service life of high-temperature and high-power short-wave tubes is more than 3,000 hours, while the service life of medium and long-wave tubes is as high as 5,000 to 20,000 hours. (Note: The service life varies depending on the type of heating pipe, installation conditions, ambient temperature, etc.)
8, ET quartz high-quality infrared radiation heating tube, of course, you have the price you can accept. Choose Evonik quartz infrared radiant heating tube with high performance price ratio, give up the low-quality and inferior heating tube that often makes you feel a headache. You will get rid of many troubles and focus more on your career.
Application of infrared radiation heating tube:
Suitable for almost all industries that require heating: printing and dyeing, shoemaking, painting, food, electronics, medicine, textiles, wood, paper, automotive, plastics, furniture, metal, heat treatment, packaging machinery, etc.
Suitable for a variety of heating objects: plastics, paper, paint, paint, textiles, cardboard, printed circuit boards, leather, rubber, oil, ceramics, glass, metal, food, vegetables, meat, etc.
Classification of infrared radiation heating tubes:
The essence of infrared radiation is electromagnetic wave radiation, and different frequencies constitute a wide spectrum - from visible light to infrared light. The temperature of the heating wire (filament or carbon fiber, etc.) determines the distribution of the radiation intensity of the heating tube with wavelength. According to the position of the maximum radiation intensity in the spectral distribution, the infrared radiant heating tube is classified into short-wave (wavelength 0.76-2.0 μm), medium-wave (wavelength 2.0-4.0 μm), and long-wave (wavelength 4.0 μm or more) products.
Vacuum tungsten alloy wire double-hole infrared radiation heating tube specification sheet
Format(profile) | 总长 Total length( mm) | 发热长 Heated length( mm) | 电压 Voltage(V) | 功率 Watts（W） |
150 – 300 | 80 – 230 | 115/120 | 400 – 1400 | |
One side connection 23×11mm/33×15mm一端出线 | 170 – 500 | 100 – 430 | 220/230/235/240 | 1000 – 3000 |
270 – 900 | 200 – 830 | 380/400/415 | 1500 – 5000 | |
870 – 2000 | 800 – 1930 | 220/230/235/240 | 1000 – 3000 | |
2070 – 3000 | 2000 – 2930 | 380/400/415 | 2000 – 5000 | |
160 –500 | 80 – 420 | 115/120 | 800 – 3000 | |
Two side connection 23×11mm/33×15mm两端出线 | 300 – 900 | 220 – 820 | 220/230/235/240 | 1500 – 6000 |
600 – 1600 | 520 – 1520 | 380/400/415 | 2500 – 10000 | |
700 – 2000 | 620 – 1920 | 480 | 3000 – 12000 | |
1500 – 3000 | 1420 – 2920 | 380/400/415 | 1500 – 10000 |
