Reflectors for Laser Cavity
et-create offers standard and specific laser reflectors that are used around laser lamps and rods in water cooled lamp pumped lasers. We manufacture reflectors from the following materials:
Fused Silica
Cerium Doped Fused Silica
Samarium Doped Glass S7005 (5%Sm), S7010 (10%Sm)

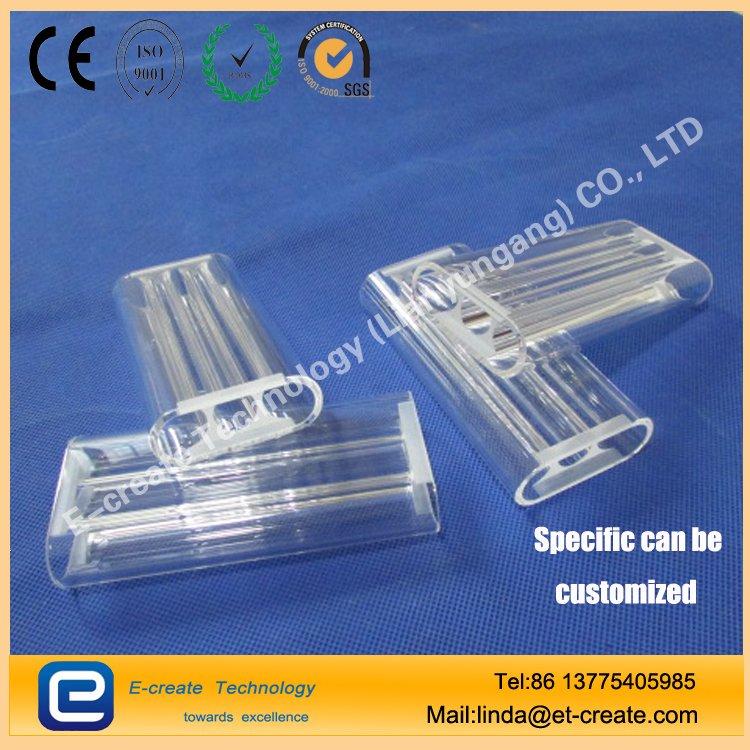

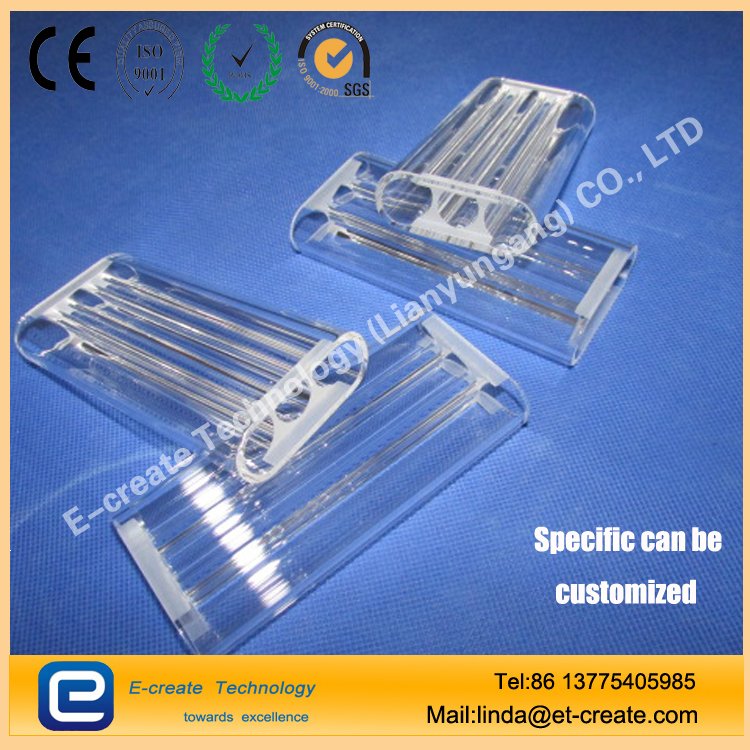

These reflectors are the same flow tubes with their cross section which is usually of an elliptic or round in shape in accordance with the customer’s requirements. These flow tubes are coated with silver (high reflection Ag) and protected with several metallic layers.
et-create can also produce such reflectors with the flow tube provided by the customer.
Sizes: Inner Diameter: 2-40 mm, +/-0.05-0.1mm
Length: 10-130mm, +/-0.05-0.1mm
Parallelity of Holes: 0.05-0.1mm,
Reflectors for Laser Cavity
et-create offers standard and specific laser reflectors that are used around laser lamps and rods in water cooled lamp pumped lasers. We manufacture reflectors from the following materials:
Fused Silica
Cerium Doped Fused Silica
Samarium Doped Glass S7005 (5%Sm), S7010 (10%Sm)
These reflectors are the same flow tubes with their cross section which is usually of an elliptic or round in shape in accordance with the customer’s requirements. These flow tubes are coated with silver (high reflection Ag) and protected with several metallic layers.
et-create can also produce such reflectors with the flow tube provided by the customer.
Sizes: Inner Diameter: 2-40 mm, +/-0.05-0.1mm
Length: 10-130mm, +/-0.05-0.1mm
Parallelity of Holes: 0.05-0.1mm,
