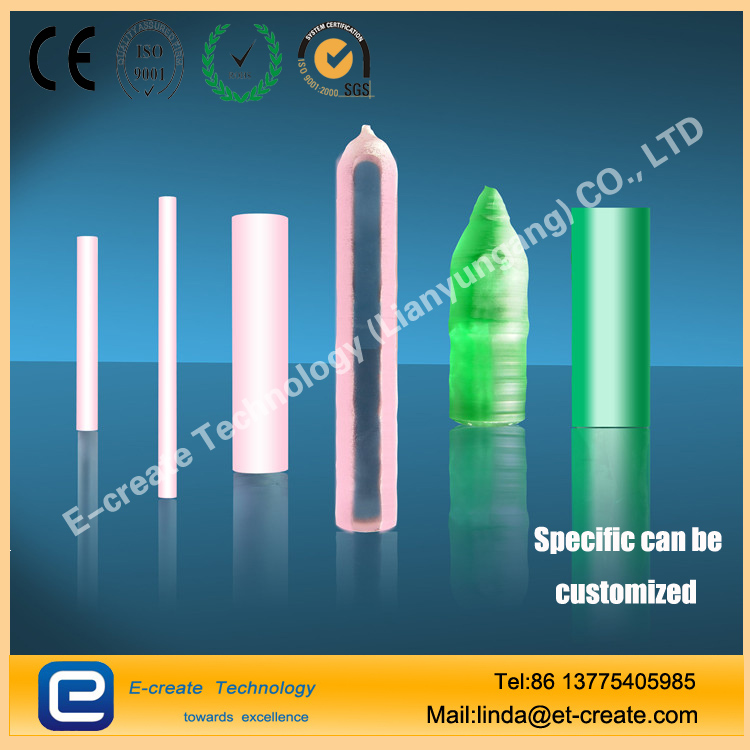

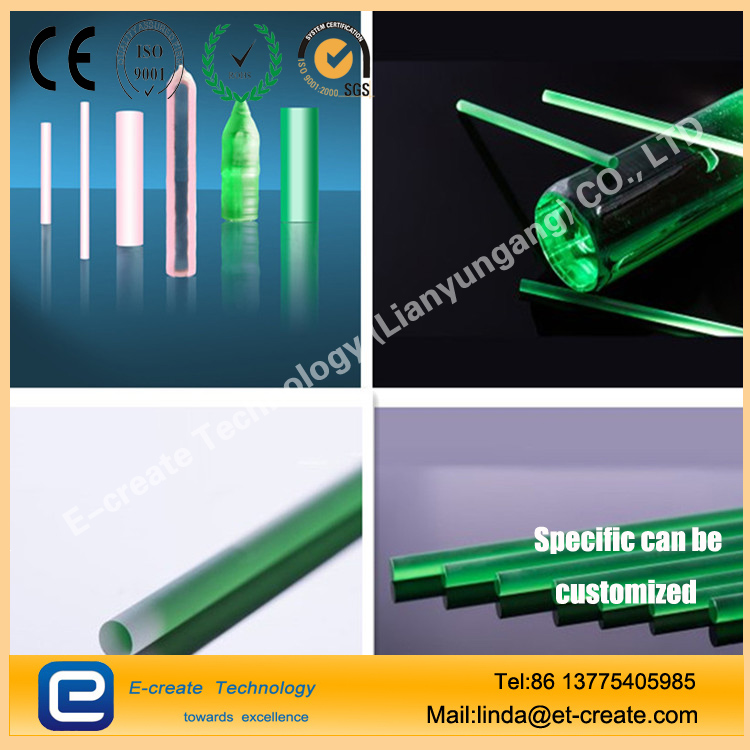

CTH:YAG
Ho:Cr:Tm:YAG is an excellent crystal emitting 2.1μm wavelength laser, which is widely used in medical, military and meteorological fields.
Suitable for lamp pumping or laser diode pumping. The crystal has high slope efficiency, works at room temperature, and the laser working wavelength is relatively safe for human eyes.
Technical index
| 掺杂浓度 | Ho:0.3～0.4at% Cr:0.3～1.2at% Tm:5～6at% |
| 晶向 | <111>±5° |
| 透射波前畸变 | ≤0.125λ/inch@1064nm |
| 消光比 | ≥25dB |
| 产品尺寸 | 直径≤15mm, 长度≤150 mm |
| 尺寸公差 | 直径:0/-0.03mm, 长度:0/+0.5mm |
| 柱面加工 | 精磨、抛光、螺纹 |
| 端面平行度 | ≤ 10" |
| 端面与棒轴垂直度 | ≤ 3′ |
| 端面平面度 | λ/10 @632.8nm |
| 表面质量 | 10-5 (MIL-O-13830A) |
| 倒边 | 0.15±0.05mm |
| 镀膜 | S1/S2：R@2100mm≤0.2% |
| 其他膜系可定制 | |
| 激光波长 | 2100nm |
| 折射率 | 1.80@2094nm |
| 特殊 | 楔角、凹面/凸面、热层镀金等 |
